Deployment Resource Reference

Jellyfish is Cogito Group’s modular platform for identity, device, crypto, PKI, certificate lifecycle, and smartcard management. It’s built as a set of microservices that you can run all-in-one for pilots or distribute and scale for production (Cloud, Hybrid, On-Prem).

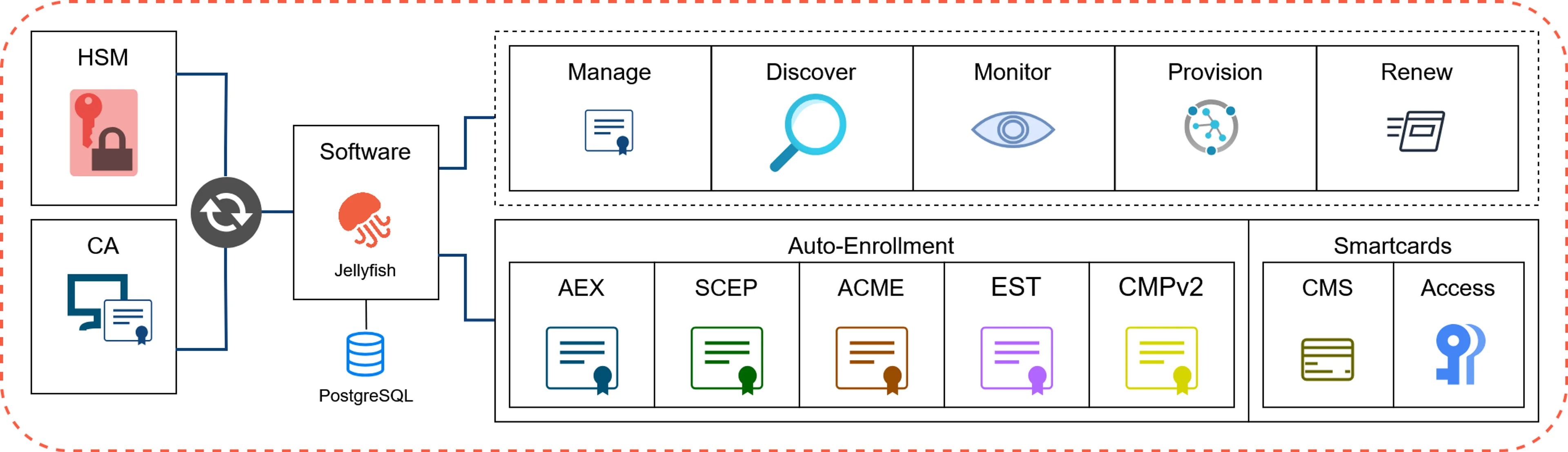

Figure 1 - Jellyfish System

System Architecture

Primary Systems

Jellyfish brings together a complete suite of enterprise security services, including Identity and Device Management, Cryptographic Services, Certificate Lifecycle Management, Public Key Infrastructure (with RA, VA, and CA connectors), and Card Management. These core systems operate with shared database and audit components, powered by PostgreSQL with optional Redis acceleration for performance and scalability.

Design Principles

Built on a modern microservice architecture, Jellyfish delivers flexibility, resilience, and security at scale. Services communicate over gRPC, with REST APIs and webhooks enabling easy integration into existing environments. Advanced RBAC, SSO, MFA, and mTLS between services ensure a secure and governed operational framework. All audit data can be forwarded to SIEM systems for centralized visibility.

Security Foundation

Jellyfish’s cryptographic core is anchored in HSM-backed key protection using the PKCS11 standard. The platform supports BYOK and key export with end-to-end encryption, along with OCSP/CRL validation, offline root CA support, and true random number generation (TRNG) through certified HSMs ensuring the highest levels of trust and compliance.

Deployment Models

Core Components

Quick Installation

The Jellyfish platform can be deployed in a few straightforward stages to get your PKI environment up and running. Each stage focuses on preparing core services, establishing trust with a Certificate Authority, and enabling secure certificate operations. Whether deployed via Docker, Linux, or Windows, the process ensures a consistent and controlled setup for both production and evaluation environments.

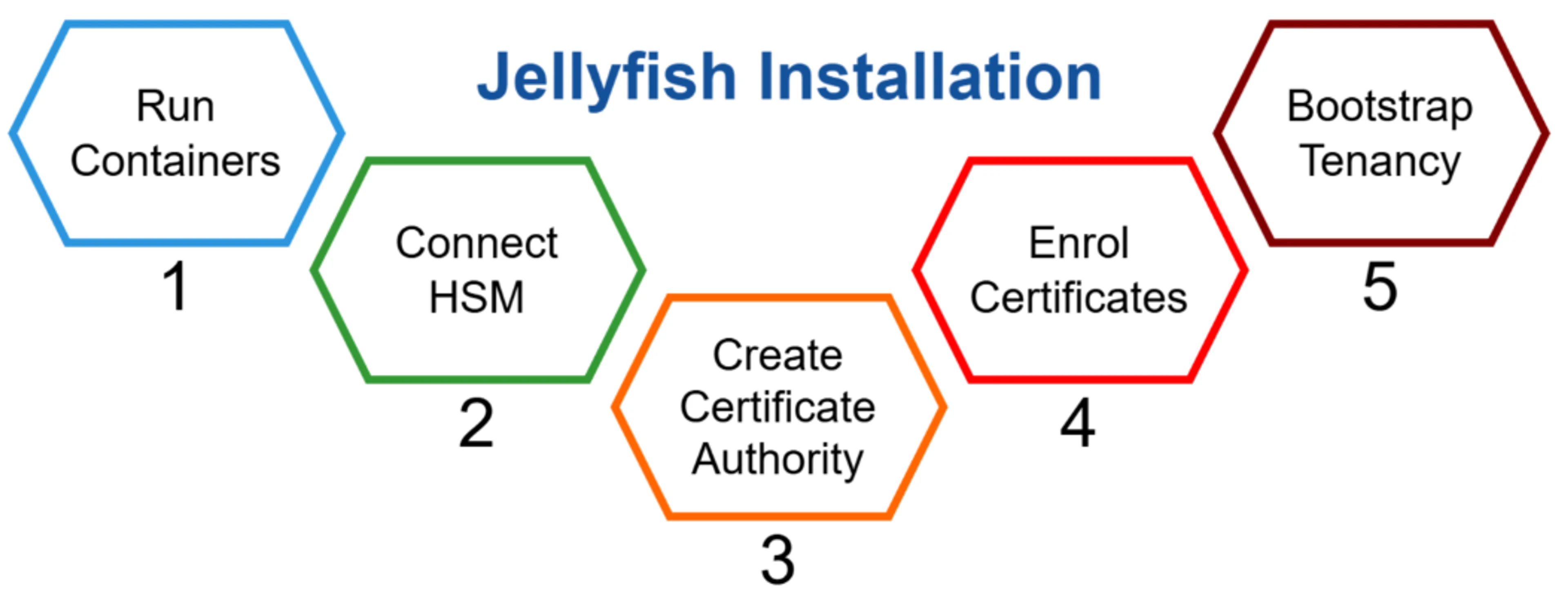

Figure 2 - Jellyfish Installation

Stage 1: Run Containers

Start the Jellyfish containers or operating system services. Ensure all core components are running and accessible within your environment.

Stage 2: Connect HSM

Configure your chosen HSM provider that supports the PKCS#11/Cryptoki standard. This establishes secure key storage and hardware-backed cryptographic operations.

Stage 3: Create Certificate Authority

Set up your first Certificate Authority by either connecting to an existing CA or bootstrapping a new one within Jellyfish. This forms the trust anchor for your environment.

Stage 4: Enrol Certificates

Define certificate templates to standardize certificate issuance across different systems, users, and applications. Enrol your first certificates through the Jellyfish portal or setup automation through ACME, SCEP, or AEX, EST, or CMPv2.

Stage 5: Bootstrap Tenancy

Access the Jellyfish web portal to create the initial management tenancy and superuser account. This establishes administrative control and access to the platform.

System Integrations

Supported Hosts

Supported HSMs

• Hardward key security - PKCS11/Cryptoki enables access to most HSM providers
• Software key security – SoftHSM, SoftKeys or PKCS12 support.

Jellyfish integrates with HSM providers that support the PKCS#11/Cryptoki standard. It is compatible with leading hardware solutions such as Entrust nCipher, Thales Luna, and Utimaco CSe, providing high performance and hardware-grade key protection for enterprise deployments. For pilot or lab environments, SoftHSM and SoftKeys offer flexible, software-based alternatives that simplify setup and testing.

Supported CAs

System Requirements

Host Requirements

High Availability Requirements

Jellyfish PKI platform is designed for continuous operation across multiple hosts and regions.

Multi-Host Deployment

• Supports distributed deployment across multiple servers or containers.
• Eliminates single points of failure through redundancy and load balancing.
• Enables automatic failover and horizontal scaling within the same environment.
• Compatible with container orchestration or OS-level clustering.

Multi-Region Deployment

• Supports deployment across geographically separated regions.
• Provides regional redundancy for disaster recovery and service continuity.
• Synchronizes key components to maintain consistent operations.
• Optimizes performance and resilience in cloud or hybrid infrastructures.

Protocols & Features

Certificate Authorities

Jellyfish manages and secures Certificate Authorities to establish trusted digital identities within your organization. It supports both internal and external CAs, ensuring centralized control, policy enforcement, and compliance with security standards.

Certificate Templates

Create and manage certificate templates to standardize issuance across your environment. Templates simplify configuration, enforce consistent policies, and streamline certificate requests for users, devices, and applications. Jellyfish templates support multiple Certificate Authorities, allowing organizations to define and apply consistent settings across different CAs.

Certificate Enrolment Automation

Automate certificate enrolment with support for ACME, SCEP, AD, EST and CMPv2 protocols. These standards enable seamless integration with devices, servers, and applications to ensure certificates are issued, renewed, and replaced without manual effort.

Certificate Lifecycle Management

Gain complete visibility and control over every certificate in your environment. Easily view, issue, renew, or revoke certificates from a single interface to reduce risk and maintain continuous trust.

Smartcard Management

Jellyfish smartcard management with integrated printing, provisioning, and PIN management tools. Supports both logical (LACS) and physical (PACS) access systems, making credential issuance fast, secure, and efficient.

Audit Stack

Maintain full accountability with comprehensive auditing and reporting. Every certificate, user action, and policy change is logged to support compliance, transparency, and forensic review when needed.

Operational Recommendations

• Network: Low-latency connectivity between components not exceeding 250 ms.
• Time Sync: all nodes must use NTP with ≤ 100 ms drift.
• Security Controls: Mutual TLS, N-of-M Custodian access, and restricted OS accounts.
• Operating Systems: RHEL 8+/Ubuntu 22.04+/Windows Server 2022+.
• Compliance: FIPS 140-3 HSM modules with Post-Quantum algorithms
